Designed for Food & Packaging Industries

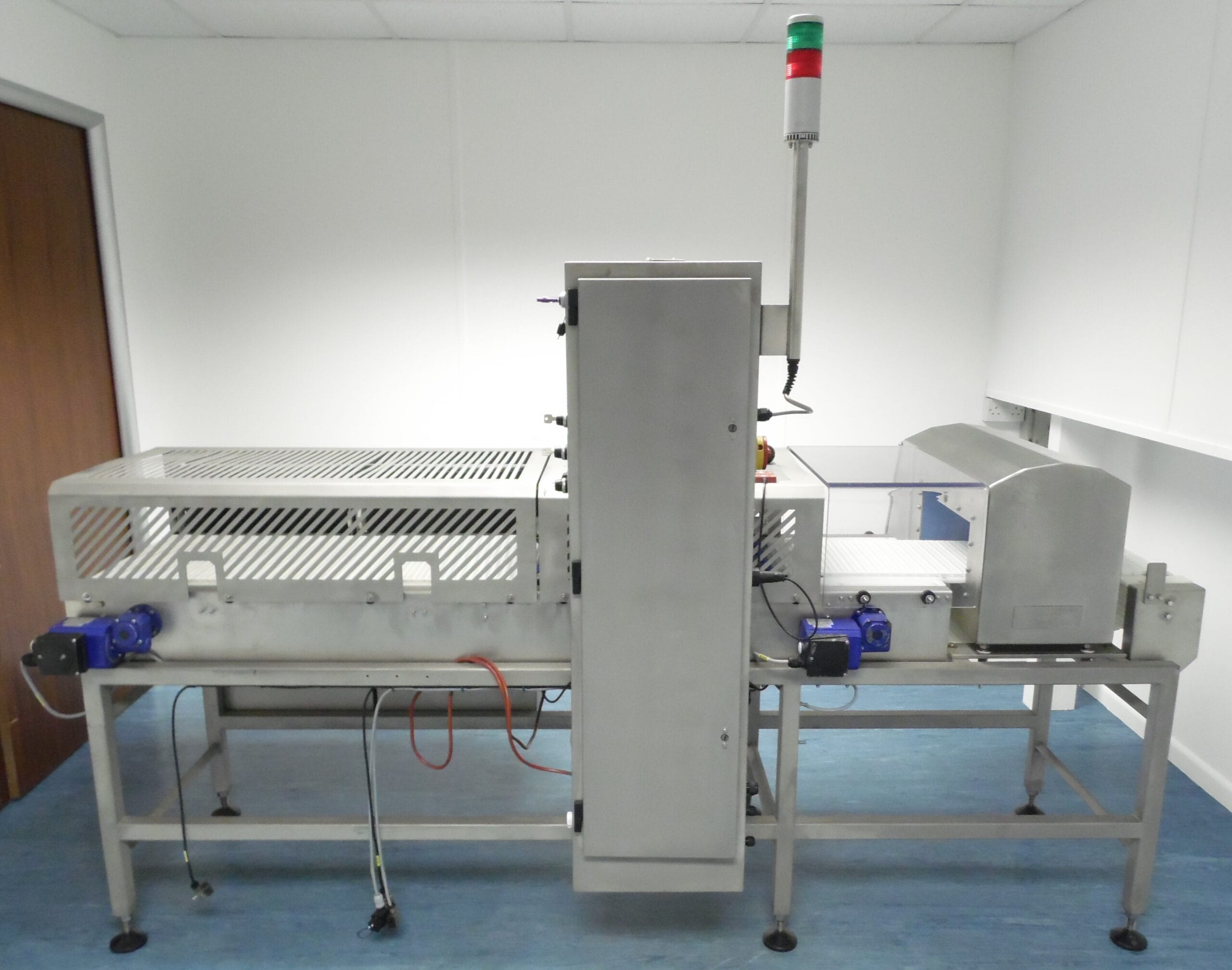

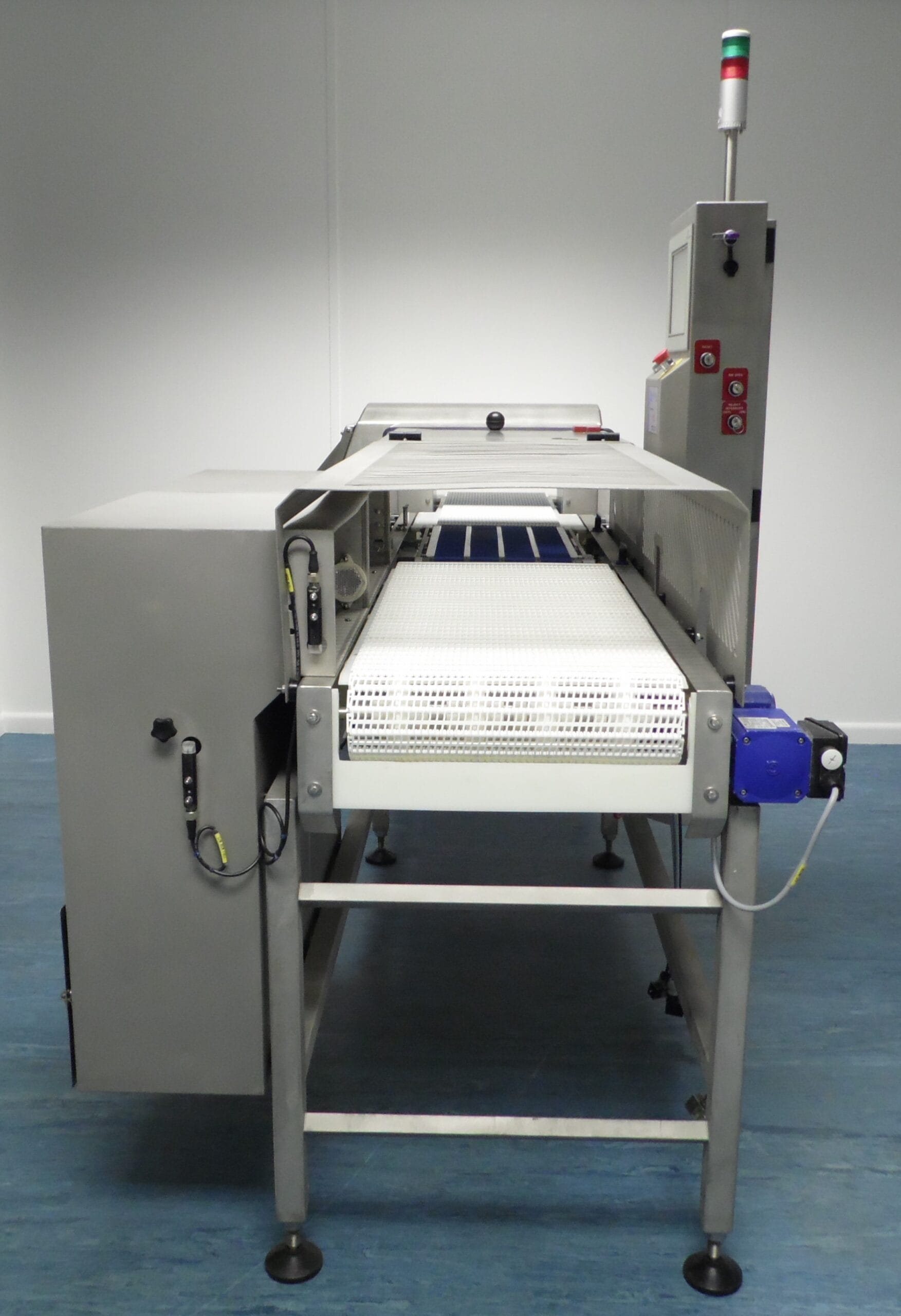

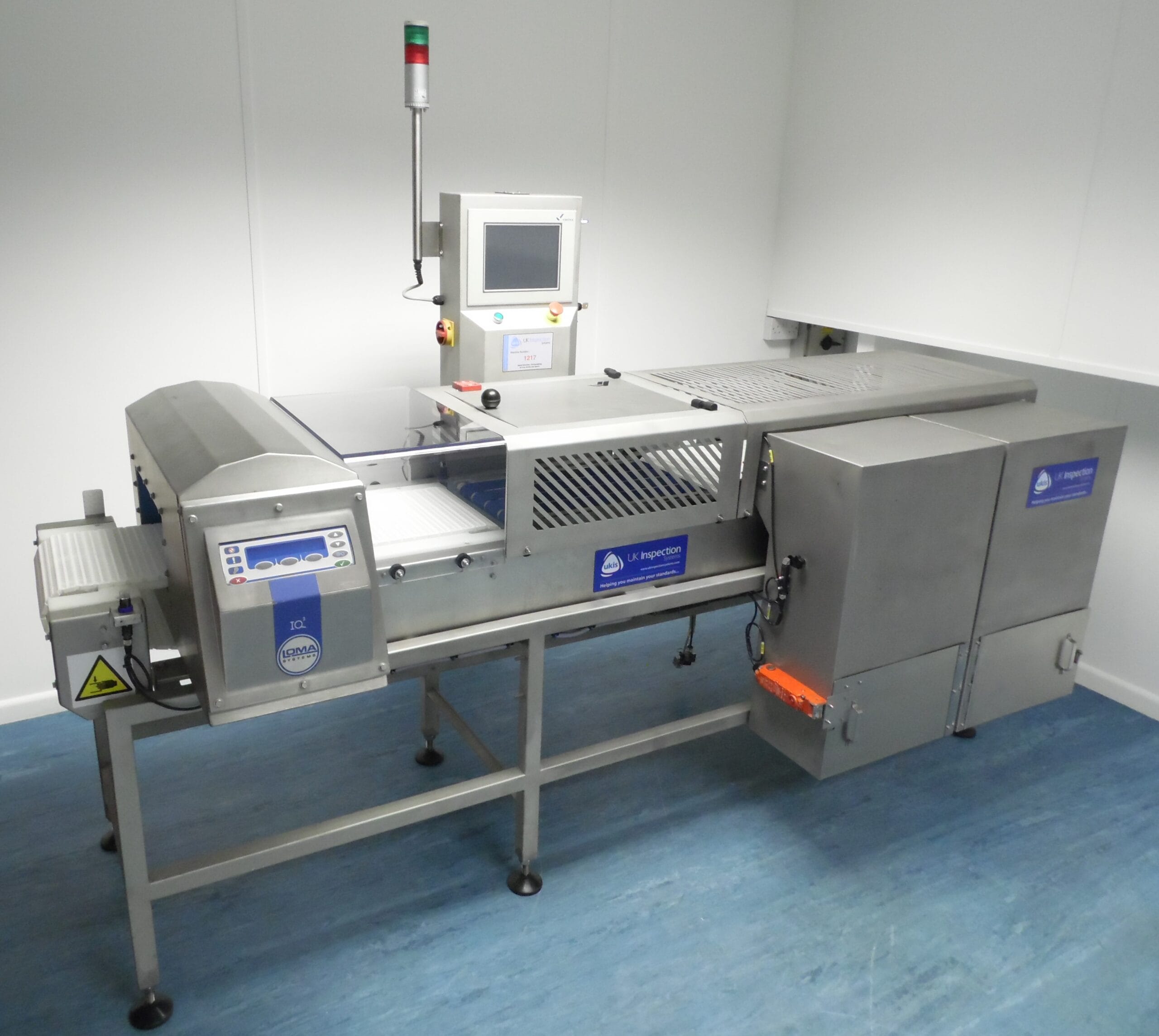

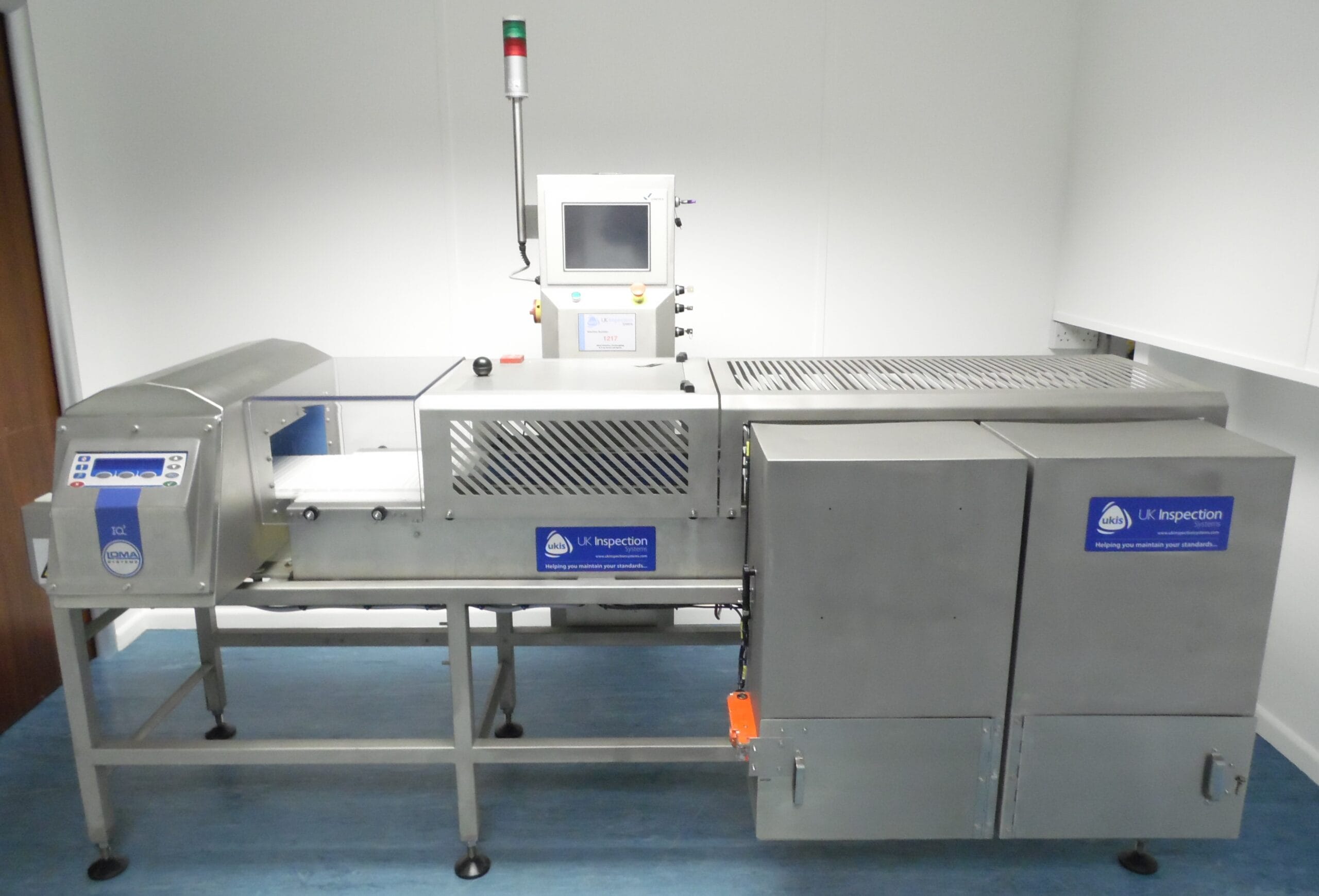

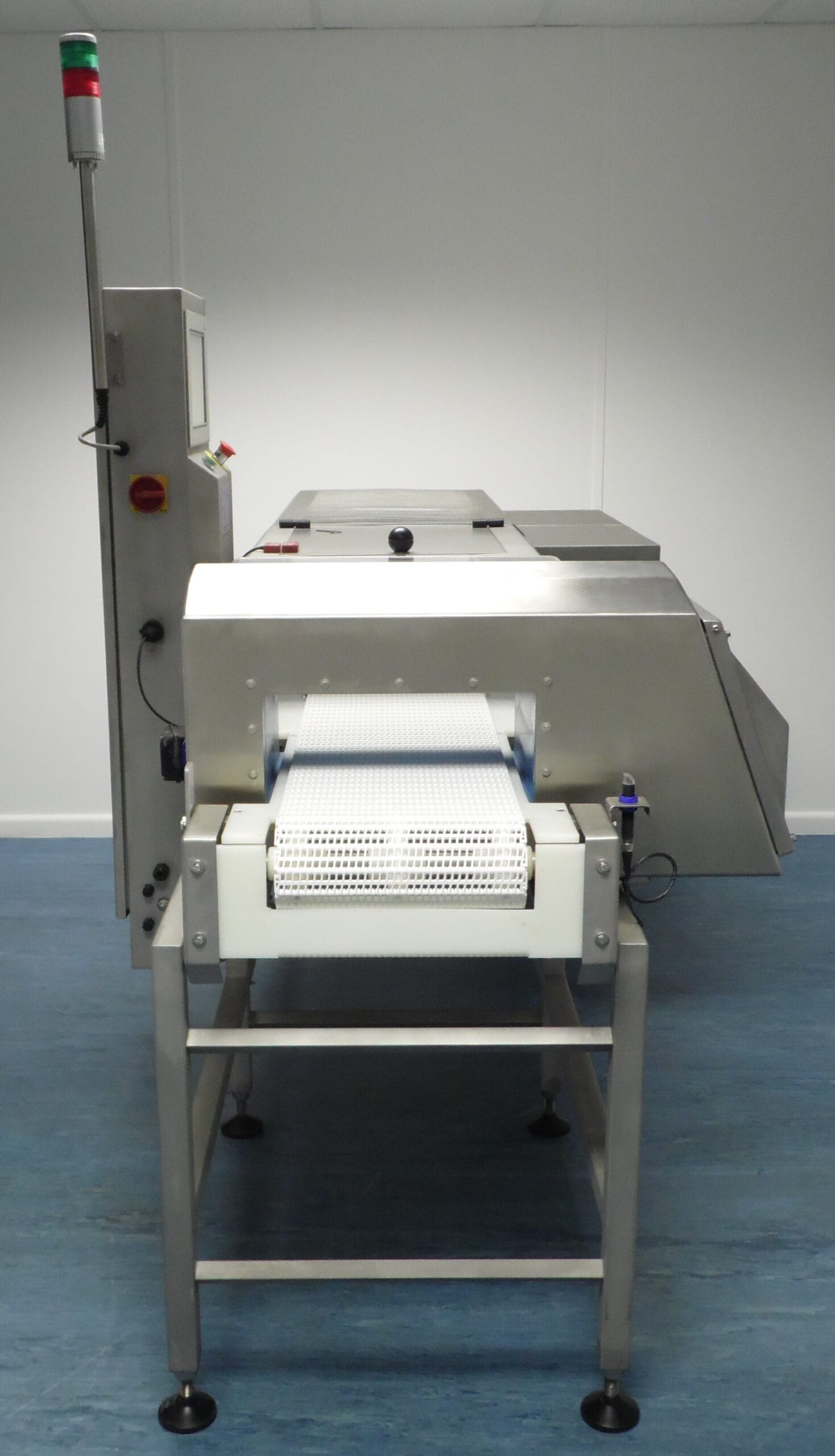

Cintex CS4000 Checkweigher incorporating a Loma IQ3 Metal Detector, a refurbished  Combination System for the Food industry, FDA Compliant, features a 350mm x 150mm search head and 550mm x 265mm weigh platform. The machine is supplied in full retail compliant specification and can be ordered with either air blast or pusher reject mechanism according to the product needs, diverting bad product in to electronically locked reject bins.

Cintex CS4000 Standard Features:

• Conveyor belt integrated with Metal Detector
• Full compliance with HACCP criteria
• Detection of magnetic, non-magnetic and stainless steel metals contaminants
• Structure and components in AISI 316L stainless steel and food compatible plastic parts (EU, FDA, USDA compliant)
• Control of multiple ejection systems available: belt stop, air blast, pusher arm (on request)
• Conveyor belt (flat or modular) made from certified food-safe materials
• System designed to the latest, most stringent safety standards
• High-reliability motor with stainless steel protective cover, high drive capacity version
• Easy belt alignment
• Quick and easy to clean
• Easy maintenance and inspection
• Up to 4 programmable inputs, closing contacts
• Up to 7 programmable relay outputs, 24vdc/1A
• Up to 2 programmable relay outputs, 230vdc/5A
• Printer output in the operating panel, RS232
• Door holder (magnet) output 24vdc/400mA
• External buzzer output in the operating panel

Cintex CS4000 Applications:

• Bakery
• Cereal
• Confectionery
• Dairy
• Fish
• Packaged Products
• Fruit & Vegetables
• Meat & Poultry
• Nuts & Grains
• Snack Foods
