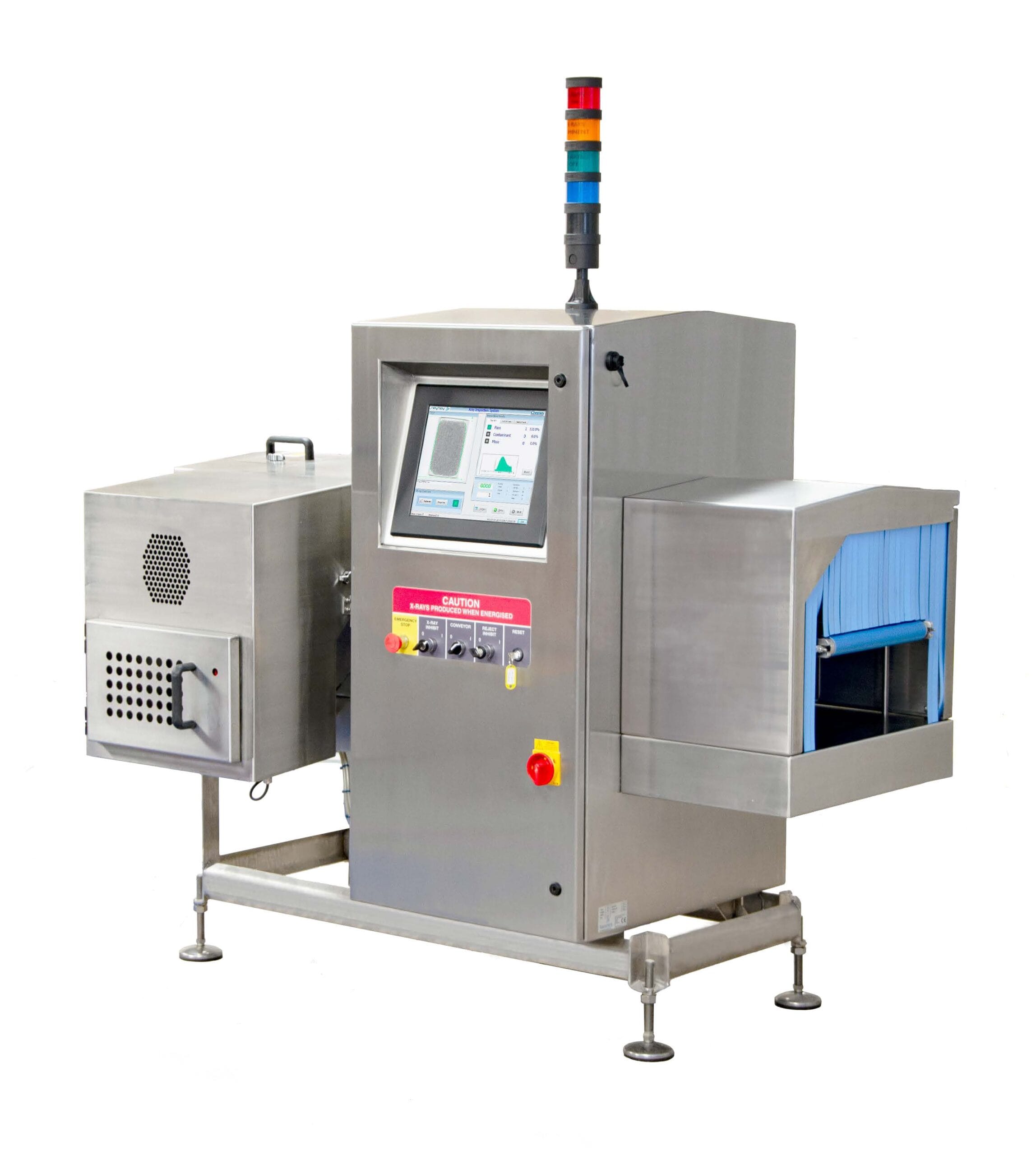

Sapphire G20 X-ray
The Sapphire G20 represents most innovative offering in the field of Automatic X-ray Inspection, combining the advanced linear array technology with inspection algorithms proven for the most difficult inspections.
Approved inspection suppliers and compliant to BRC, Tesco and M&S standards, the Sapphire X-ray G20 is our most sought-after and adaptable system with a wide range of capabilities.
Superior contaminant identification is achieved using Sapphire's exclusive capabilities for high-sensitivity imaging thanks to the expertise in low-energy technology.
These systems are deployed widely for packaged products such as confectionary, fresh and frozen products, bakery and ready meals. They are also ideal for loose product flows such as raisins, nuts and freeze-dried fruit. The Sapphire G20 conveyor inspection system can inspect virtually any discrete packaged items or continuous bulk product flows that can travel by conveyor, guaranteeing your product and packaging integrity, so vital to commercial success and brand reputation.
Key Features
- Low cost of ownership
- Real time Analysis of Product on Packaging Lines
- Inspects wide product range including bulk flow
- Monitoring of Product and Package Attributes
- Detection and Elimination of Foreign Bodies
- Touchscreen user friendly operator control interface
- Automatic product variation calibration and set-up
- Quick and easy wash-down and maintenance design
- Multiple product type Configurations
- Designed for Food Industry Standards
Superior Performance
- Contaminant detection (metal, stone, glass, bone and certain plastics).
- Scanning for mass, missing or broken products.
- Detecting packing voids.
- Isolating reject based on contamination or check-weigh non-conformities.
Sapphire G20 X-ray Specifications
- Technology: Computer-controlled ‘Low Energy’ technology
- X-ray generator: Various specifications from 50kV to 70kV
- Conveyor: 0 – 100 m/min computer controlled
- Detector array length: up to 358mm
- Maximum line rate: 2,000 lines per second
- Resolution: 4096 grey levels per pixel
- Video display: 15” colour touchscreen with real-time images and diagnostics
- Calibration: Automatic adaptive calibration during normal operation
- Detection limit: 0.4-1.2 mm stainless steel typical, dependent on product
- Inspection rate: Up to 400 packs/minute
- Power requirements: 110 VAC or 200-240 VAC at 1500VA
- Dimension: 1708 x 1088 x 1946 mm
